In the previous article, I decoded the mechanisms of Flow Builder (flow), emit, and collect in a sample Kotlin Coroutines Flow code like the one below, by reading through the kotlinx.coroutines library source code. If you haven’t read it yet, I recommend checking it out.

fun simple(): Flow<Int> = flow {
    for (i in 1..3) {
        delay(100)
        emit(i)
    }
}

fun main() = runBlocking<Unit> {
    simple().collect { value -> println(value) }
}

Quick Recap

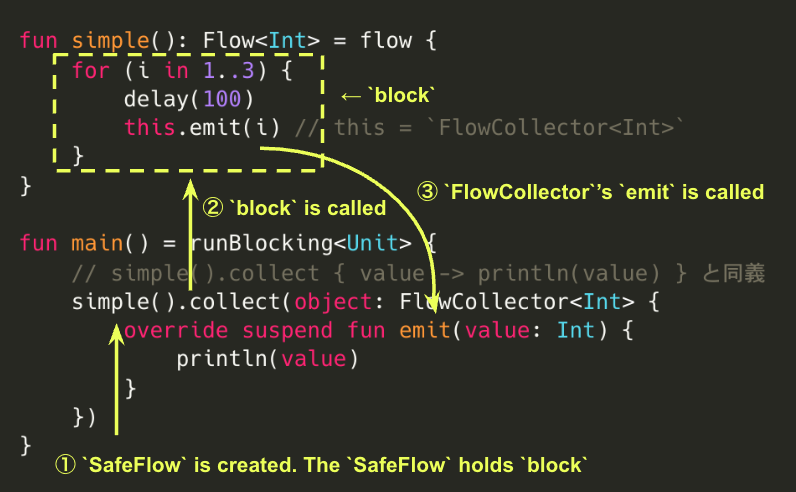

In the previous article, we clarified the mechanisms and relationships of Flow Builder (flow), emit, and collect.

1. Flow Builder (flow) creates an instance of SafeFlow. SafeFlow holds the block (a lambda with FlowCollector as receiver) passed to flow.
2. When collect is called on SafeFlow, the block is executed with the FlowCollector passed to collect as its receiver.
3. Inside block, the emit function defined in FlowCollector is called. Note that when a lambda is passed to collect, that lambda is treated as the emit function via SAM conversion.

In other words, every time emit is called inside flow {}, the lambda passed to collect is executed.

Note: If the above explanation is unclear, the previous article covers it in more detail.

In this article, as an extension of the previous one, we will decode the behind-the-scenes mechanism when Intermediate Operators such as map and filter are present.

fun simple(): Flow<Int> = flow {
    for (i in 1..5) {
        delay(100)
        emit(i)
    }
}

fun Int.isEven() = this % 2 == 0

fun main() = runBlocking<Unit> {
    simple()
        .filter { it.isEven() } // 2, 4
        .map { it * 2 }         // 4, 8
        .collect { value -> println(value) }
}

▶️ Run in Playground

Internal Implementation of map

Let’s look at map, a representative example of an Intermediate Operator. map is a function that applies some transformation to each value in a Flow. The transformation is defined by the lambda passed to map. The source code for map is shown below.

public inline fun <T, R> Flow<T>.map(crossinline transform: suspend (value: T) -> R): Flow<R> = transform { value ->
    return@transform emit(transform(value))
}

kotlinx.coroutines — Transform.kt L49-L51

The return type is Flow<R>, which tells us that each element’s type is converted from T to R. It also takes crossinline transform: suspend (value: T) -> R as an argument — this is the lambda that defines the T-to-R transformation.

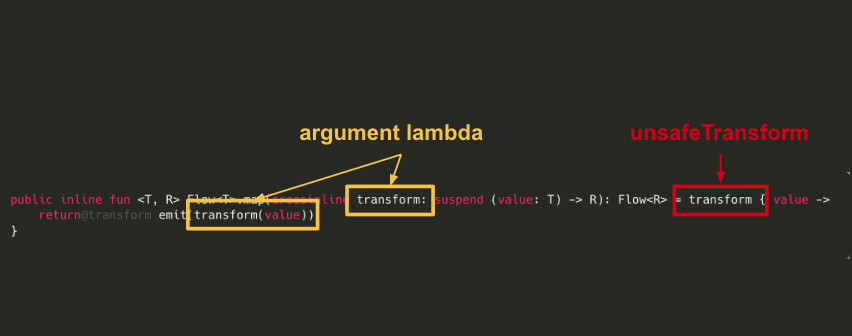

Here things get slightly confusing, because there are two different things called transform:

1. The argument lambda representing the transformation logic (suspend (value: T) -> R)
2. The Flow<T>.unsafeTransform extension function on Flow, imported as import kotlinx.coroutines.flow.unsafeTransform as transform

Inside map, the argument transform is called within the lambda passed to unsafeTransform (the second transform). The source code for unsafeTransform is shown below.

@PublishedApi
internal inline fun <T, R> Flow<T>.unsafeTransform(
    crossinline transform: suspend FlowCollector<R>.(value: T) -> Unit
): Flow<R> = unsafeFlow { // Note: unsafe flow is used here, because unsafeTransform is only for internal use
    collect { value ->
        transform(value)
    }
}

kotlinx.coroutines — Emitters.kt L42-L49

A function called unsafeFlow is used here. Like flow, this is a type of Flow Builder. Looking at the source code for unsafeFlow, it returns an anonymous object conforming to the Flow<T> interface.

internal inline fun <T> unsafeFlow(crossinline block: suspend FlowCollector<T>.() -> Unit): Flow<T> {
    return object : Flow<T> {
        override suspend fun collect(collector: FlowCollector<T>) {
            collector.block()
        }
    }
}

kotlinx.coroutines — SafeCollector.common.kt L103-L110

Note: The unsafe prefix is used because, unlike flow, the runtime check that verifies the execution context is correct is omitted.

Since this is getting complex, let me rewrite the map function with unsafeTransform and unsafeFlow expanded for clarity:

// Original implementation
// public inline fun <T, R> Flow<T>.map(crossinline transform: suspend (value: T) -> R): Flow<R> = transform { value ->
//     return@transform emit(transform(value))
// }

public inline fun <T, R> Flow<T>.map(
    crossinline transform: suspend (value: T) -> R
): Flow<R> = object : Flow<R> {
    override suspend fun collect(collector: FlowCollector<R>) {
        collector.run {
            this@map.collect { value ->
                emit(transform(value))
            }
        }
    }
}

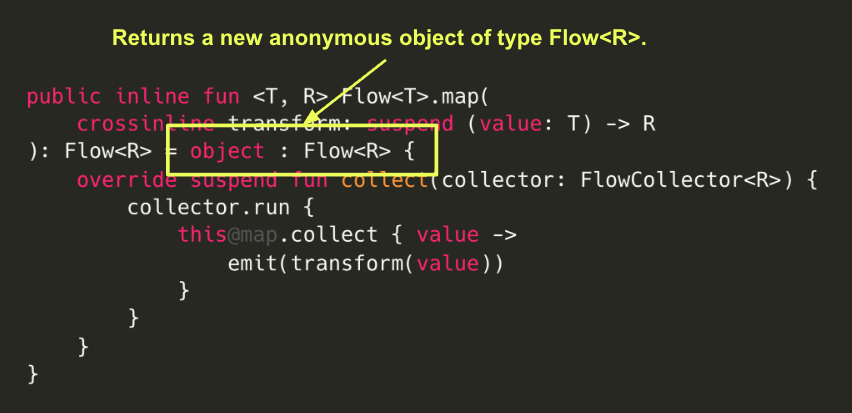

Let me walk through the expanded implementation step by step. First, map creates and returns a new anonymous object of type Flow<R>.

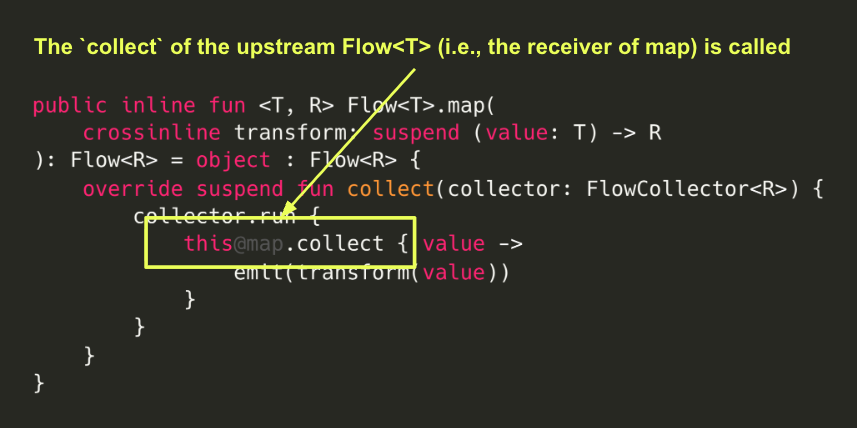

Inside the collect function of the Flow<R> returned by map, the collect of the upstream Flow<T> (i.e., the receiver of map) is called first.

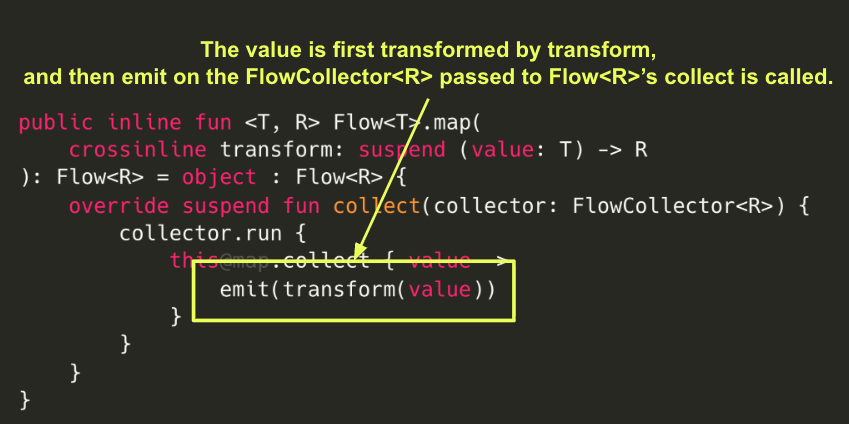

From Flow<T>’s collect, the lambda (block) passed to the Flow Builder (flow) is called. When emit is called inside that lambda, the value is first transformed by transform, and then emit on the FlowCollector<R> passed to Flow<R>’s collect is called.

Let’s now walk through the overall flow using the following sample code:

fun simple(): Flow<Int> = flow {
    for (i in 1..3) {
        delay(100)
        emit(i)
    }
}

fun main() = runBlocking<Unit> {
    simple()
        .map { "${it * 2}!" } // "2!", "4!", "6!"
        .collect { value -> println(value) }
}

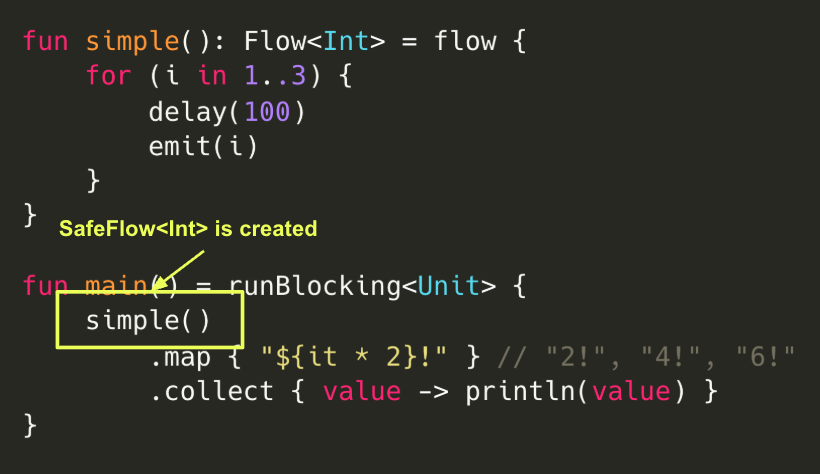

First, flow creates a SafeFlow<Int>.

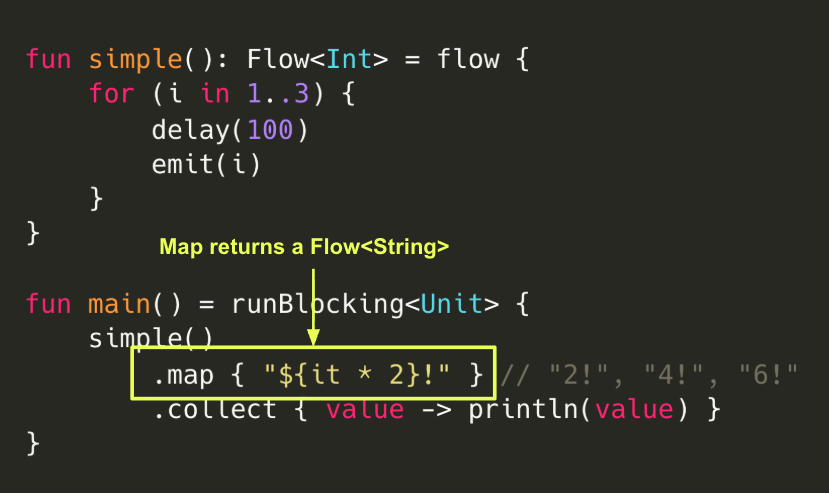

Next, map creates a Flow<String>.

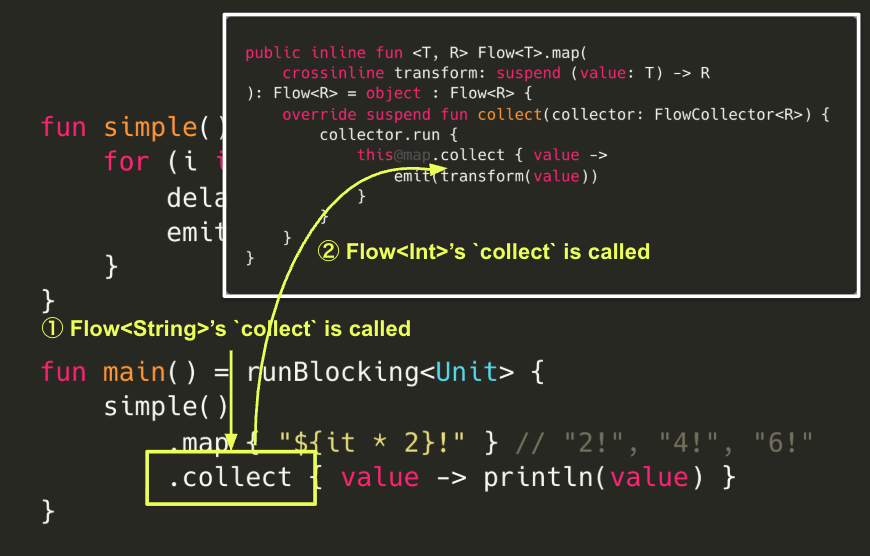

collect is called on Flow<String>, which in turn calls collect on Flow<Int>.

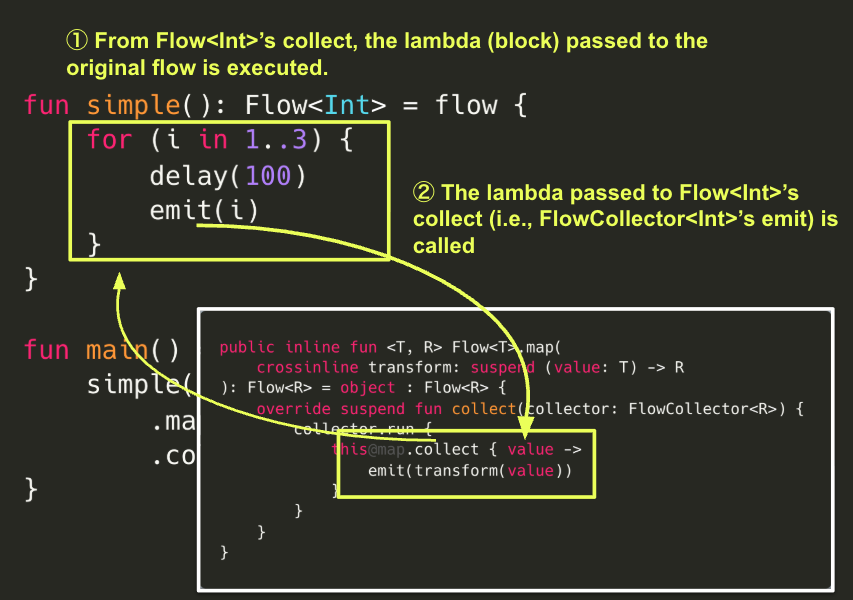

From Flow<Int>’s collect, the lambda (block) passed to the original flow is executed. When emit is called inside block, the lambda passed to Flow<Int>’s collect (i.e., FlowCollector<Int>’s emit) is called.

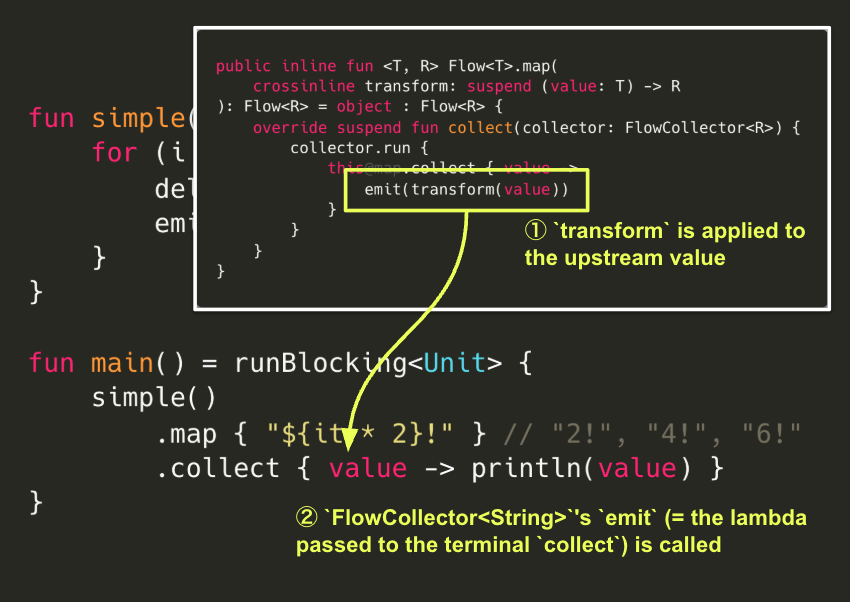

Finally, after transform is applied to the upstream value (value), FlowCollector<String>’s emit (= the lambda passed to the terminal collect) is called.

To summarize the execution order: Flow<String>’s collect → Flow<Int>’s collect → FlowCollector<Int>’s emit → FlowCollector<String>’s emit. The same pattern applies when multiple Intermediate Operators are present.

We have now decoded the internal mechanism of map from its source code. The three key points are:

• Each time map is applied, a new Flow<R> is created.
• When the terminal .collect is called, collect is called sequentially from downstream to upstream. Then, each time a value is emitted inside the original flow {}, emit on FlowCollector is called sequentially from upstream to downstream, ultimately calling the lambda passed to the terminal collect.
• Just before passing a value to the downstream FlowCollector’s emit, the value is transformed by transform.

Internal Implementation of filter

As another example, let’s look at the internal implementation of filter. Looking at its source code, we can see it is implemented using unsafeTransform, just like map.

public inline fun <T> Flow<T>.filter(crossinline predicate: suspend (T) -> Boolean): Flow<T> = transform { value ->
    if (predicate(value)) return@transform emit(value)
}

kotlinx.coroutines — Transform.kt L17-L19

As with map, here is the expanded code with unsafeTransform inlined for clarity. The difference from map is that instead of emit(transform(value)), it uses if (predicate(value)) emit(value) — only emitting values to the downstream FlowCollector<T> that satisfy the condition lambda (predicate).

public inline fun <T> Flow<T>.filter(
    crossinline predicate: suspend (T) -> Boolean
): Flow<T> = object : Flow<T> {
    override suspend fun collect(collector: FlowCollector<T>) {
        collector.run {
            this@filter.collect { value ->
                if (predicate(value)) emit(value) // 💡 Difference from `map`
            }
        }
    }
}

Summary

In this article, we decoded the mechanisms of two fundamental Intermediate Operators — map and filter — from the source code. The three key points are:

• Each time map or filter is applied, a new Flow is created.
• When the terminal .collect is called, collect is called sequentially from downstream to upstream. Then, each time a value is emitted inside the original flow {}, emit on FlowCollector is called sequentially from upstream to downstream, ultimately calling the lambda passed to the terminal collect.
• Just before passing a value to the downstream FlowCollector’s emit, map applies a transformation, while filter performs a conditional branch to decide whether to emit the value.

That said, there are many other types of Intermediate Operators:

• More advanced operations like take and debounce
• Buffering operators like buffer and conflate
• Context-switching operators like flowOn
• Error-handling operators like catch

I plan to cover other Intermediate Operators in future articles.
